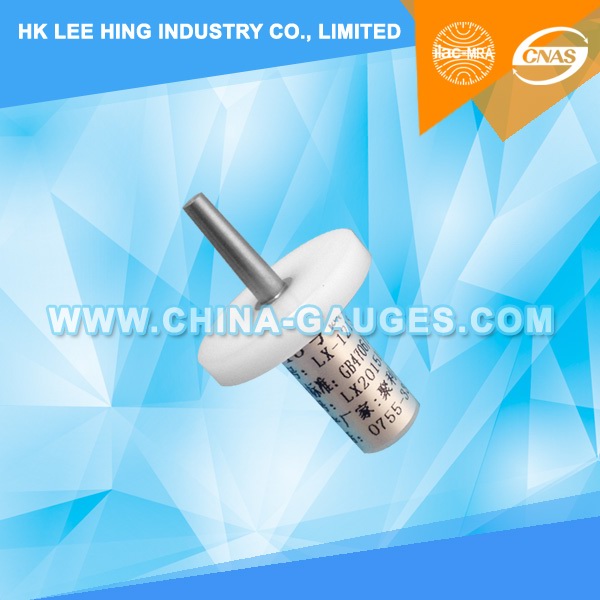

Short Test Pin - Test Probe 13 of IEC61032
- Measurement & Analysis Instruments > Safety Instrument
- Include ISO 17025 CNAS & ILAC Test Report
- Item No.: LX-1213
- Made in China
- Product description: This pin probe is intended to verify the protection against access to hazardous live parts in class 0 equipment and class II equipment (see IEC61032).
PRODUCT INTRODUCTION

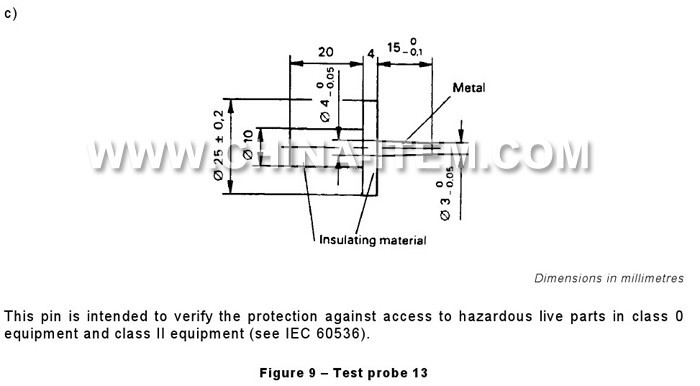

Meets IEC CSA & UL requirements Test Probe 13 of Short Test Pin - Fig. 9 of EN 61032
This Test Probe Pins (Figure 9 - Test probe 13 of IEC 61032) is intended to verify the protection against access to hazardous live parts in class 0 equipment and class II equipment (see IEC60536).
Conforms to:
Standard IEC 61032, IEC 60065, IEC 60335-1, IEC 60950, IEC 60601, IEC 60745 and UL etc.
Technical Parameter:
Test probe diameter:3 mm
Test probe length:15 mm
Baffle plate thickness:4 mm
Baffle plate diameter:25 mm
Handle length:20 mm
Handle diameter:10 mm
HK LEE HING INDUSTRY CO., LIMITED are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.
Main Products: Go No Go Gauges, IP Tester, Test Probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 Test Finger, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Security Testing Machine, Plugs and Socket Outlet Gauge, Lamp Cap Gauge Tester, Lampholders Gauge Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.
If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
