The IEC 60132/60335 standard Test Probe Pin Thorn Kit are the necessary items for household and similar electrical appliances anti-electric shock protection test.

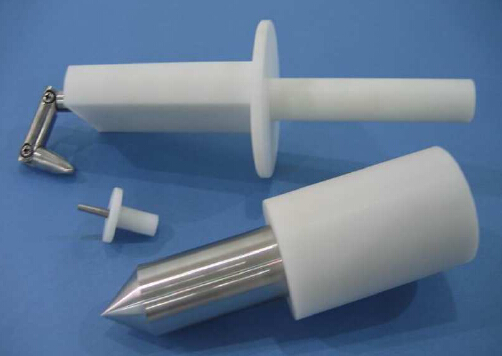

The test kit consists of :
No. | Item Name | Stadanrd |
1 | Test Probe B | IEC 61032 figure 2 |
2 | Test Probe 13 | IEC 61032 figure 9 |
3 | Test Probe 41 | IEC 61032 figure 16 |
1. Stadard Test Probe B
Bending finger diameter :12mm.
Bending length: 80mm (the total length of three sections)
Baffle diameter: 50mm
Baffle length: 100mm
This is a precision test finger made in accordance with many standards like IEC 61032 figure 2, IEC60950 figure 2A,IEC60884,IEC60335,UL507,and UL1278 figure 8.4. This probe is intended to verify the basic protection against access to hazardous parts.
2. Test Probe 13
Probe diameter: head 3mm tail 4mm
Probe length: 15mm
Baffle diameter: 25mm
Baffle thickness: 4mm
This pin is intended to verify the protection against access to hazardous live parts in class 0 equipment and class II equipment. It conforms to IEC61032 figure 9 Test probe13, IEC60950 figure 2B, IEC60335 and IEC60065 standard requirements.
3. Test Probe 41
Probe diameter: 30mm
Probe length: 80mm
Handle diameter: 50mm
Handle length: 80mm
The test thorn probe is intended to verify the protection against access to glowing heating elements. It complies with IEC61032 figure 16 Test probe 41, IEC60335 standard requirements.
